Mini-Integrated Portable Hardness Tester

portable hardness testers pht-3500

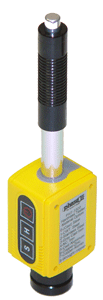

Model No. PHT-3300

The PHASE II portable hardness tester, Model No. PHT-3300 is an advanced integrated portable hardness tester distinguished by its very compact size, high accuracy, wide measuring range and simplicity of operation. It is suitable for testing the hardness of all metals and widely applied in many areas of industry.
The PHT-3300 as with all dynamic portable hardness testers, is designed to test very large hard parts. Steel should be close to 1” thick of solid material. Softer metals need even more mass.

The PHT-3300 portable hardness tester combines the universal impact device D and a data processor in a single unit. It automatically computes all Vickers, Brinell, Rockwell and Shore hardness values. USB output enables this new model to print any of it’s memory from up to 500 groups. The impact direction can be set so that the accurate values can be achieved at any angle, even upside down! Statistical mean value is automatically provided.

The measuring method of the PHT-3300 portable hardness tester is defined as “the quotient of the impact body’s rebound velocity over its impact velocity”. Optional accessories include various support rings to meet the requirements of specialized convex or concave applications.

MEETS ASTM A956-06
SPECIFICATIONS



Technical Specifications & Features for PHT-3300 Portable Hardness Tester:

portable hardness testers

Dimensions: 6.10” x  2.36” x  1.49”  (155 X 60 X 38mm)
Impact Device: D
Impact Energy: 8 Ft-Lbs   (11nmm)
Test Tip: Tungsten Carbide
Measuring Accuracy: +- 0.8% (Corresponding To +- 1 Hrc At Hrc=58)
Max. Hardness Of Sample: 980hv
Weight: 0.48lb   (220g)
Impact Direction: Any Angle
Operating Temperature: 32  To 122 Degrees F  (0 To 50 Degrees C.)
Min. Weight Of Sample: 11 lbs / 5kg
Min. Radius Of Curved Surface:q 1.2in  (30mm)  (With Support Rings:11mm)
Power Supply: 3.6V Lithium Rechargeable Battery
Features:
Data memory: Up to 500 Groups
Output: USB 1.1
portable hardness testers



Materials And Testing Range  PHT-3300 portable hardness tester  (HL:200-900)

MATERIAL

HRC

HRB

HB

HV

HS

Steel & cast steel

20-70

60-100

93-674

83-976

32-100

Cold tool steel

20-70





80-898



Stainless steel

20-70

46-100

85-655

85-802



Grey cast iron





93-334





Nodular cast iron





131-387





Cast aluminum alloys





27-159





Copper/zinc alloys (brass)



13-95

40-173





CuAI/CuSn alloys   (bronze)





60-290





Wrought copper alloys





45-315

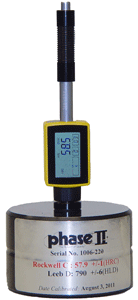

The Phase II Portable Hardness Tester PHT-3300 Comes Complete
with a Calibrated Test Block, USB cable and Software, Rugged Carry Case and Operation Manual.
