Portable Hardness Tester w/ Printer

Model No. PHT-3500

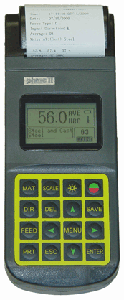

State of the art, digital tester is designed to test the hardness of large hard metal parts. Loaded with useful functions and a built in mini-printer the PHT-3500 Portable Hardness Tester is clearly the industry leader for fast accurate hardness testing with advanced USB output and thermal printing capabilities.

The PHT-3500 Portable Hardness Tester can perform tests that easily convert to the most popular hardness scales, including Rockwell, Brinell, Vickers, Shore, etc.

Designed to test large hard parts:

Example: Tool steel should be close to 1” thick of solid material

Operation:	Load the impact body Place the impact body on your test piece Push the button to begin testing and obtain reading
Standard Accessories:	Base instrument Impact device D Calibrated test block Custom carry case Cleaning brush Operation manual
Optional Accessories:	Impact devices; DC, D+15, DL, G, C Special support rings Mini Printer
Functions:	Easy to use keypad operation Auto identification of Impact Device Large LCD display with back light USB Ouput Automatic conversions to: Brinell, Rockwell B & C, Vicker and Shore Automatic mean value as well as Min & Max values Battery Indicator Memory capacity (100 groups)
Specifications:	Accuracy: +/- 0.5% (referred to L=800, Repeatability accuracy: +/- 4L units) L=Leeb Measuring range: 200-960 HL Materials: steel & cast steel, alloy tool steel, stainless steel, grey cast iron, spheroidal iron, cast aluminum, brass, bronze, wrought copper alloy. Battery type: AA alkaline (4) Operating temperature: 5-104 degrees F Dimensions: 150 x 74 x 32mm Weight: 245 grams

Special Application Impact Devices

Impact Device D
Universal standard device:
Use for the majority of hardness testing assignments
Impact Device DL (not shown)
Needle front section .109” diameter x 1.96” length
Measurements in extremely confined spaces
Impact Device G
Enlarged test tip: For use on solid heavy components such as; rough castings and forgings. Brinell only.
Impact Device DC
Extremely short impact device
Used for very confined spaces such as holes, cylinders, internal measurements
Impact Device D+15
Slim front section with coil set back.
Hardness measurements in grooves, recessed surface.
Impact Device C
Reduced impact energy
For testing case hardened or thin walled components


Impact Device Specifications for PHT-3500

Impact devices	D/DC/DL	D+15	C	G
Impact energy	11Nmm	11Nmm	3Nmm	90Nmm
Mass of the impact body	5.5g	7.8g	3.0g	20g
	DL: 7.2g
Test tip
* Hardness	1600HV	1600HV	1600HV	1600HV
* Diameter	3mm	3mm	3mm	5mm
* Material		Tungsten	Tungsten
*		carbide	carbide
Impact device
* Diameter	20mm	20mm	20mm	30mm
* Length	147/86mm	162mm	141mm	254mm
* Weight	75/50g	80g	75g	250g
Max. hardness of sample	940HV	940HV	1000HV	650HB
Preparation of surface
* Max. roughness depth Rt	10 m m	10 m m	2.5 m m	30 m m
* Average roughness Ra	2 m m	2 m m	0.4 m m	6.3 m m
Min. weight of sample
* Of compact shape	5kg	5kg	1.5kg	15kg
* On solid support	2kg	2kg	0.5kg	5kg
* Coupled on plate	0.  1kg	0.  1kg	0.  02kg	0.  5kg
Min. thickness of sample
* Coupled	3mm	3mm	1mm	10mm
* Min. thickness of layers	0.  8mm	0.  8mm	0.  2mm	-
Indentation of test tip
With 300 HV
* Diameter	0.  54mm	0.  54mm	0.  38mm	1.03mm
* Depth	24 m m	24 m m	12 m m	53 m m
with 600 HV
* Diameter	0.  45mm	0.  45mm	0.  32mm	0.  90mm
* Depth	17 m m	17 m m	8 m m	41 m m
with 800 HV
* Diameter	0.  35mm	0.  35mm	0.  30mm	-
* Depth	10 m m	10 m m	7 m m	-

SUPPORT RINGS: We offer a 12pc set of rings for testing concave or convex parts.
